Overview of a few of the key concepts in Clarify which is useful when working with the API.
Before you can start using the API you'll need to create an
Integration (requires admin access to your organization).
You have a Raspberry Pi connected to a few temperature sensors which collectively have data you want to send to Clarify. You name the integration e.g.
My RPi Sensors.
A signal holds timeseries data and metadata related to this data.
You have a temperature and humidity sensor connected to your Raspberry Pi and would like to visualize timeseries data from the temperature readings.
You create a signal in Clarify in the
My RPi Sensors integration with the sensor data and name it e.g.
RPi Temperature #1.
Check out Writing data to Clarify for more information about how to create or update signals and add data.
An item contains metadata and points to a signal as its source. Items can be added to timelines to visualize the actual data.
You'd like to create a timeline with data from the
RPi Temperature #1 signal in the
My RPi Sensors integration. You find the signal in Clarify and publish it, which automatically creates an Item you can add to timelines. You update metadata of the Item with the engineering unit

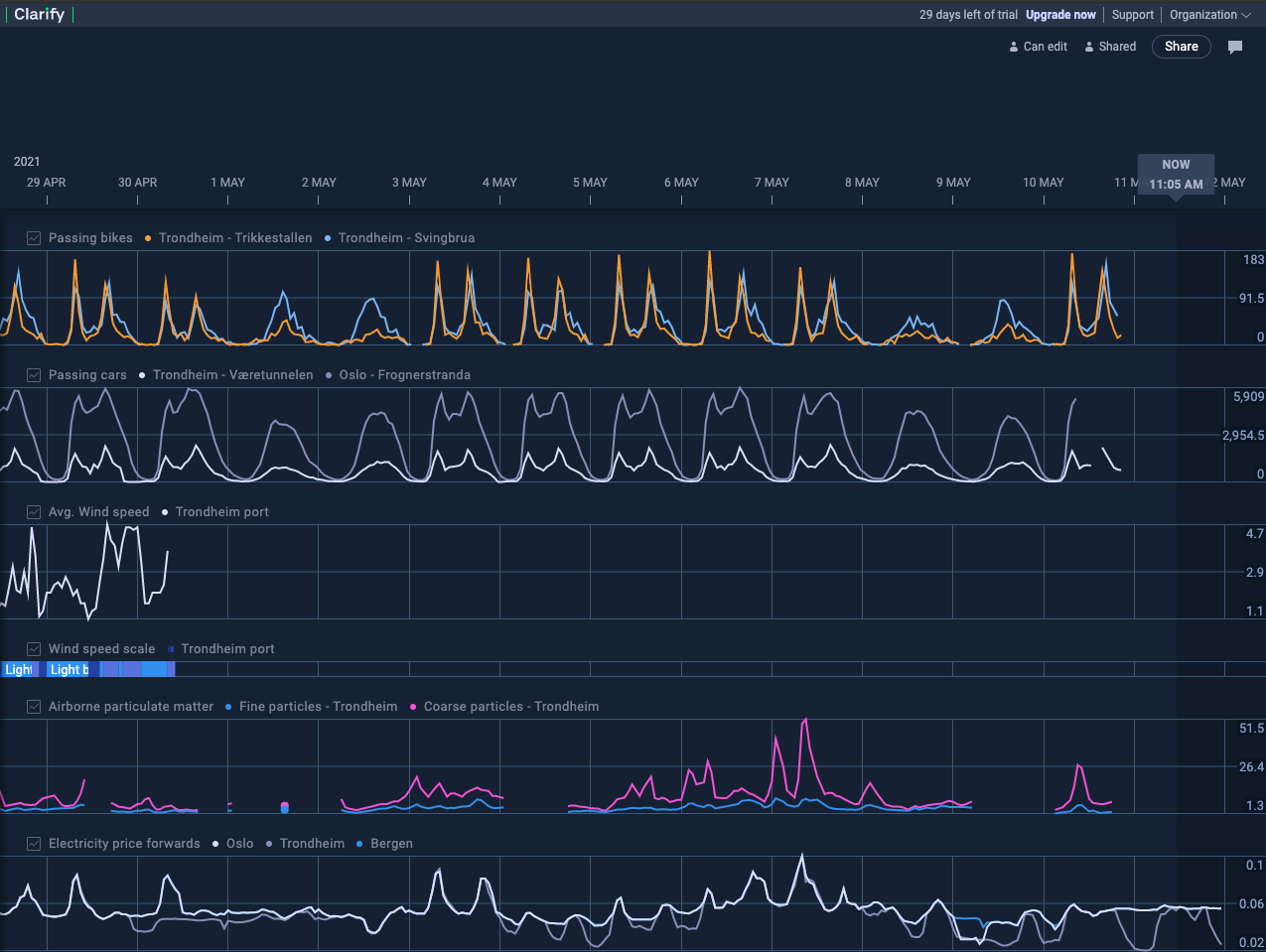

In the screenshot below you can see how the timeseries data might look in Clarify.
Updated about a month ago
Create an integration and download client credentials.
